Weld On End

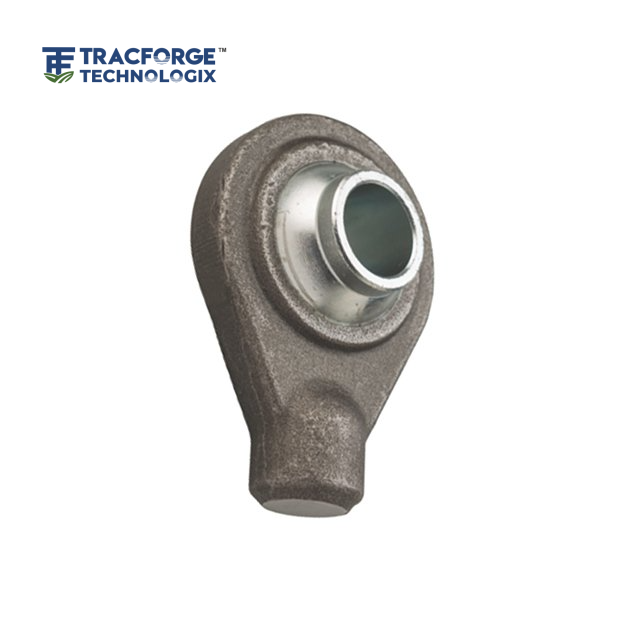

The TracForge Weld-On End is a heavy-duty forged steel component designed for tractor three-point linkage systems. It offers a strong weldable base, precision-machined eye, and reliable performance for top link or lift arm fabrication and repairs.

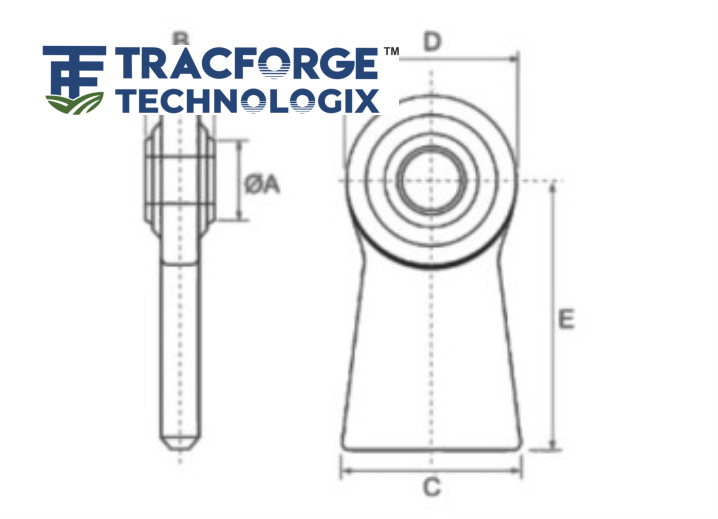

CODE	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)
TGF01	19.2	44	25	53	48
TGF02	20.2	44	25	53	48
TGF03	19.2	44	25	53	48
TGF04	19.2	44	26	55	65
TGF05	19.2	44	30	62	34
TGF06	20.2	44	30	62	34
TGF07	22.1	44	30	62	34
TGF08	19.2	44	34	62	60
TGF09	22.1	44	34	62	60
TGF10	20.2	44	34	62	60
TGF11	19.2	44	30	62	50
TGF12	20.2	44	30	62	50
TGF13	22.1	44	34	62	58
TGF14	19.2	44	34	62	58
TGF15	19.2	35	26	62	55
TGF16	22.1	35	26	62	55
TGF17	19.2	51	38	75	65
TGF18	25.2	51	38	75	65
TGF19	30.2	51	38	75	65
TGF20	19.2	51	45	72	70
TGF21	22.1	51	45	72	70
TGF22	25.4	51	45	72	70
TGF23	30.2	51	45	72	70
TGF24	25.4	51	38	90	85
TGF25	30.2	51	38	90	85
TGF26	19.2	51	50	85	70
TGF27	25.4	51	50	85	70
TGF28	25.4	51	50	83	65
TGF29	30.2	42	50	83	65
TGF30	30.2	55	50	83	65
TGF31	35.2	35	50	83	65
TGF32	35.2	55	50	83	65
TGF33	30.2	55	50	92	65
TGF34	30.2	44	50	92	65
TGF35	35.2	35	50	92	65

Quality You Can Trust

ISO 9001

Quality Management System certification ensuring consistent product quality.

ISO 14001

Environmental Management System for sustainable manufacturing practices.

OEM-Grade Fitment

Guaranteed compatibility and performance meeting original equipment standards.

Product Description

The TracForge Weld-On End is built for superior durability and precision in agricultural applications. Manufactured from high-strength forged steel, it provides a secure weldable connection for custom top link assemblies, lift arms, and other tractor linkage components.
Its accurately machined ball housing ensures smooth articulation, while multiple size options (A, B, C, D, E dimensions) make it compatible with a wide range of tractor categories including Cat-0, Cat-1, Cat-2, and heavy-duty systems.
Ideal for implement manufacturers, farm workshops, and equipment repair professionals, this weld-on end delivers long-lasting performance, excellent structural integrity, and reliability under heavy loads and tough field conditions.
