V-BOLTS (In MM)

High-strength V-Bolts designed for secure clamping of pipes, poles, and industrial assemblies. Manufactured from premium steel and precision-threaded for maximum durability and vibration resistance. Ideal for automotive, agricultural, and mechanical applications.

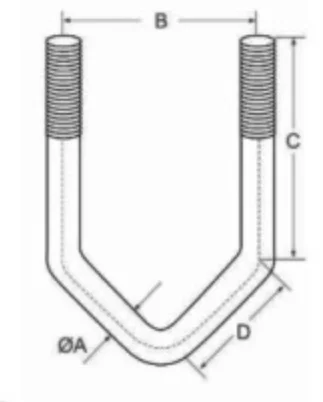

Code	Dia. ØA (mm)	Dim. B (mm)	Dim. C (mm)	Dim. D (mm)
TGF-51	11	70	37	42
TGF-52	12.8	82	39	49
TGF-53	11	90	30	56
TGF-54	15	96	52	60.5

Quality You Can Trust

ISO 9001

Quality Management System certification ensuring consistent product quality.

ISO 14001

Environmental Management System for sustainable manufacturing practices.

OEM-Grade Fitment

Guaranteed compatibility and performance meeting original equipment standards.

Product Description

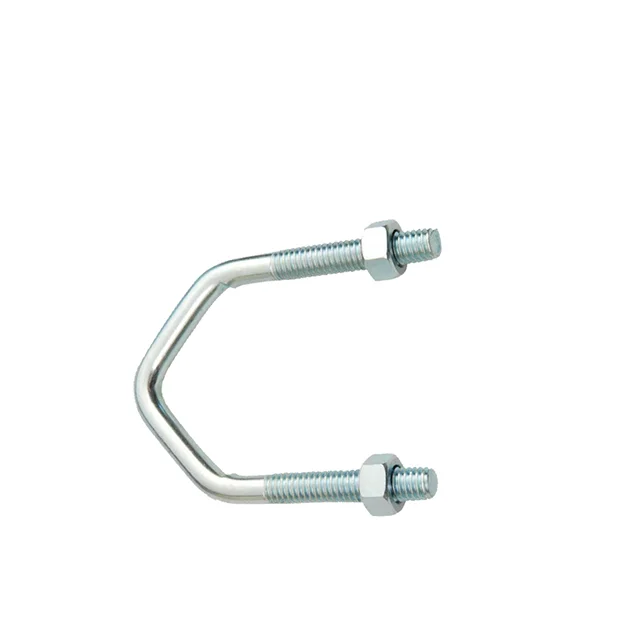

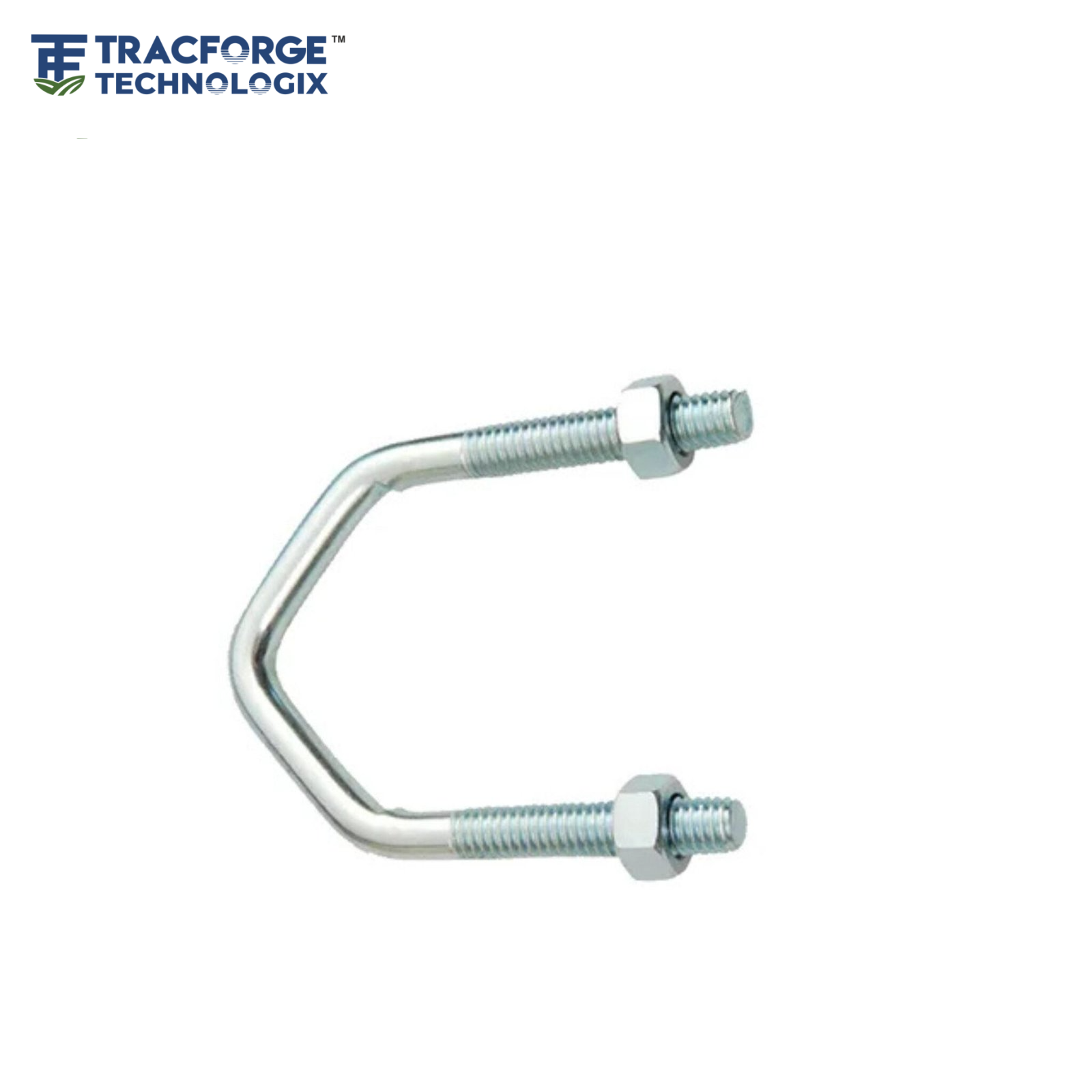

Our V-Bolts (Metric Series) are engineered for applications requiring firm and stable fastening where round U-bolts are not suitable. Each bolt is manufactured using high-tensile steel and finished with corrosion-resistant coating to ensure long service life in harsh environments.

The precision-formed V-shape provides exceptional grip around angular, square, or irregular profiles. Fully threaded legs allow flexible tightening and secure mounting. Suitable for automotive chassis, suspension mounts, trailer assemblies, machinery frames, and pipe fittings.

Designed for reliability, strength, and ease of installation—making them a trusted choice for industrial and heavy-duty uses.
