TOP LINK ASSEMBLY (METRIC)

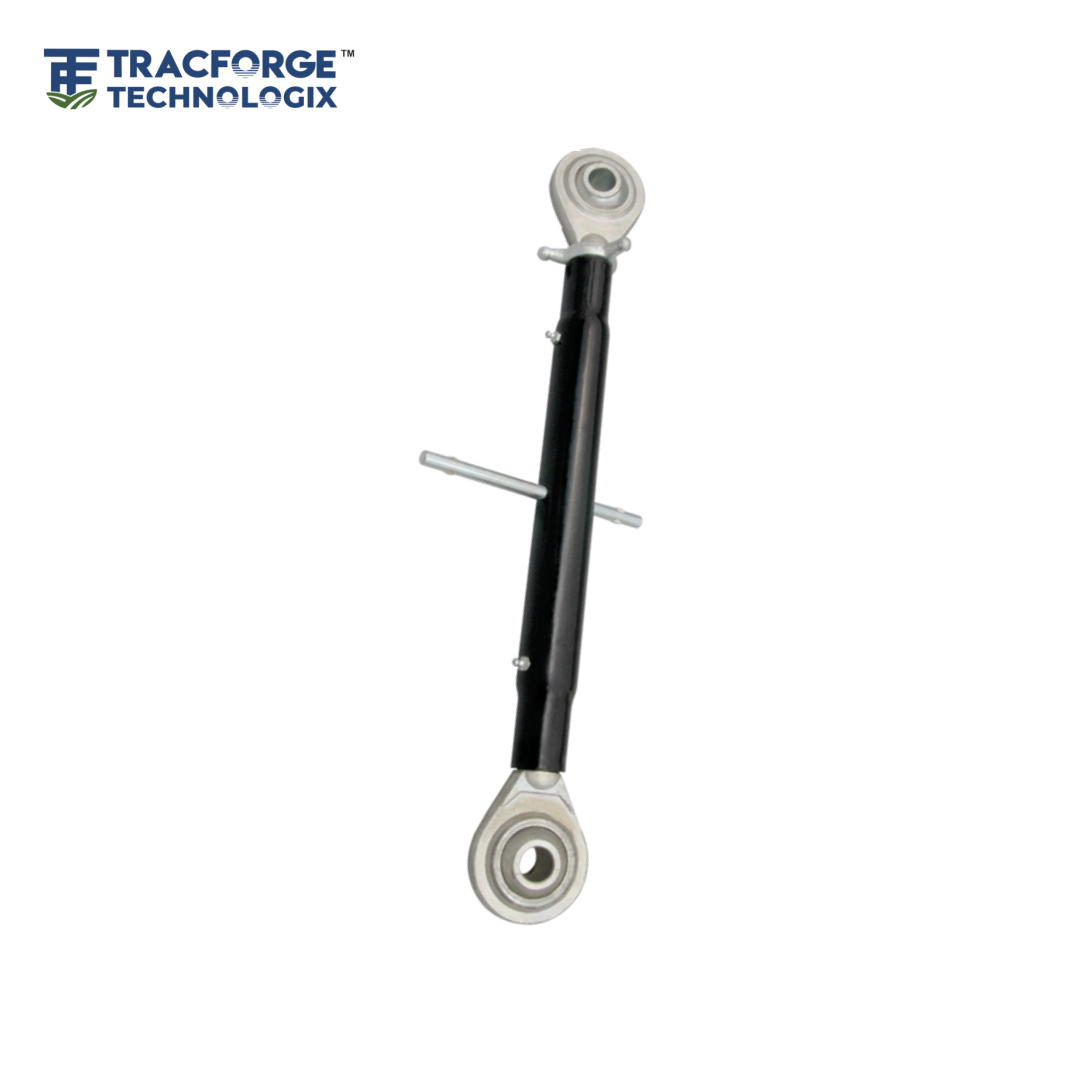

Heavy-duty Metric Top Link Assembly designed for agricultural tractors and 3-point hitch systems. Manufactured with reinforced steel, precision metric threads, and forged ball ends for long-lasting durability. Available in M22, M24, and M27 thread sizes with multiple length options to suit CAT 1 & CAT 2 tractors.

THREAD M22 × 2.5

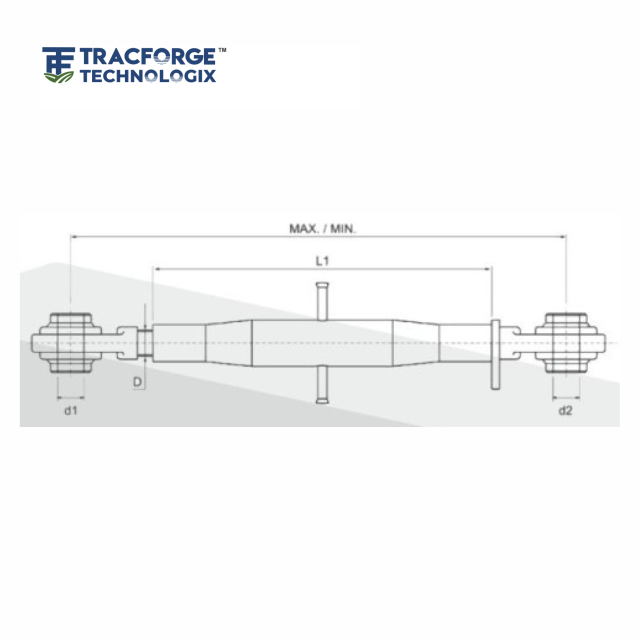

CODE	CAT d1–d2	PIPE L1	THREAD D	MIN.	MAX.
TGF2211180	1–1	180	M22 × 2.5	290	440
TGF2211220	1–1	220	M22 × 2.5	330	480
TGF2211230	1–1	230	M22 × 2.5	340	490
TGF2211300	1–1	300	M22 × 2.5	410	560
TGF2211280	1–1	280	M22 × 2.5	390	540

THREAD M24 × 3

CODE	CAT d1–d2	PIPE L1	THREAD D	MIN.	MAX.
TGF2411120	1–1	120	M24 × 3	230	410
TGF2411140	1–1	140	M24 × 3	250	430
TGF2411150	1–1	150	M24 × 3	260	440
TGF2411165	1–1	165	M24 × 3	275	445
TGF2411180	1–1	180	M24 × 3	290	470
TGF2411200	1–1	200	M24 × 3	310	490
TGF2411230	1–1	230	M24 × 3	340	520
TGF2411250	1–1	250	M24 × 3	360	540
TGF2411270	1–1	270	M24 × 3	380	560
TGF2411300	1–1	300	M24 × 3	410	590
TGF2411330	1–1	330	M24 × 3	440	620
TGF2411270	1–1	270	M24 × 3	470	650
TGF2421330	2–2	330	M24 × 3	470	650
TGF2422350	2–2	350	M24 × 3	440	620
TGF2422400	2–2	400	M24 × 3	500	680

THREAD M27 × 3

CODE	CAT d1–d2	PIPE L1	THREAD D	MIN.	MAX.
TGF2711275	1–1	275	M27 × 3	395	625
TGF2722275	2–2	275	M27 × 3	395	645
TGF2711320	1–1	320	M27 × 3	440	670
TGF2712320	1–2	320	M27 × 3	440	670
TGF2722320	2–2	320	M27 × 3	440	690
TGF2711350	1–1	350	M27 × 3	470	700
TGF2721350	1–2	350	M27 × 3	470	710
TGF2722350	2–2	350	M27 × 3	470	720
TGF2711370	1–1	370	M27 × 3	490	730
TGF2722370	2–2	370	M27 × 3	490	740
TGF2711380	1–1	380	M27 × 3	500	740
TGF2721380	1–2	380	M27 × 3	500	740
TGF2722380	2–2	380	M27 × 3	500	750
TGF2711400	1–1	400	M27 × 3	520	750
TGF2712400	1–2	400	M27 × 3	520	760
TGF2722400	2–2	400	M27 × 3	520	770
TGF2711430	1–1	430	M27 × 3	550	780
TGF2721430	1–2	430	M27 × 3	550	800
TGF2722430	2–2	430	M27 × 3	550	800
TGF2711450	1–2	450	M27 × 3	570	810
TGF2722450	2–2	450	M27 × 3	570	820
TGF2711470	1–1	470	M27 × 3	590	820
TGF2712470	1–2	470	M27 × 3	590	830
TGF2722470	2–2	470	M27 × 3	590	840
TGF2711500	1–1	500	M27 × 3	620	850
TGF2712500	1–2	500	M27 × 3	620	860
TGF2722500	2–2	500	M27 × 3	620	870
TGF2722570	2–2	570	M27 × 3	690	940

THREAD M30 × 3

CODE	CAT d1–d2	PIPE L1	THREAD D	MIN.	MAX.
TGF3011370	1–1	370	M30 × 3	500	720
TGF3012370	1–2	370	M30 × 3	500	730
TGF3022370	2–2	370	M30 × 3	500	740
TGF3011400	1–1	400	M30 × 3	530	750
TGF3012400	1–2	400	M30 × 3	530	760
TGF3022400	2–2	400	M30 × 3	530	770
TGF3011450	1–2	450	M30 × 3	580	810
TGF3012450	1–2	450	M30 × 3	580	820
TGF3022450	2–2	450	M30 × 3	580	840
TGF3011460	1–2	460	M30 × 3	590	830
TGF3012500	1–1	500	M30 × 3	630	850
TGF3011500	1–2	500	M30 × 3	630	860
TGF3022500	2–2	500	M30 × 3	630	880
TGF3022550	2–2	550	M30 × 3	650	930
TGF3022560	2–2	560	M30 × 3	650	940
TGF3022600	2–2	600	M30 × 3	930	980
TGF3022650	2–2	650	M30 × 3	730	1030
TGF3022700	2–2	700	M30 × 3	880	1080
TGF3022720	2–2	720	M30 × 3	880	1100

Quality You Can Trust

ISO 9001

Quality Management System certification ensuring consistent product quality.

ISO 14001

Environmental Management System for sustainable manufacturing practices.

OEM-Grade Fitment

Guaranteed compatibility and performance meeting original equipment standards.

Product Description

The Metric Top Link Assembly is a rugged and reliable component used in 3-point hitch systems for tractors. Designed with precision metric threads (M22, M24, and M27), it provides smooth adjustability and high strength for demanding agricultural applications. Each unit is built from premium-grade steel tubing with forged ball ends to ensure durability, secure fitment, and exceptional load-bearing capability.

This top link assembly is suitable for CAT 1 and CAT 2 tractors, offering a wide range of lengths to fit various implements such as rotary tillers, cultivators, plows, sprayers, seeders, and more. Its corrosion-resistant finish ensures long-lasting performance in tough field environments.

Engineered for stability, ease of adjustment, and compatibility across different tractor models, this Metric Top Link Assembly delivers unmatched value and reliability for farmers, OEM manufacturers, and equipment suppliers worldwide.
