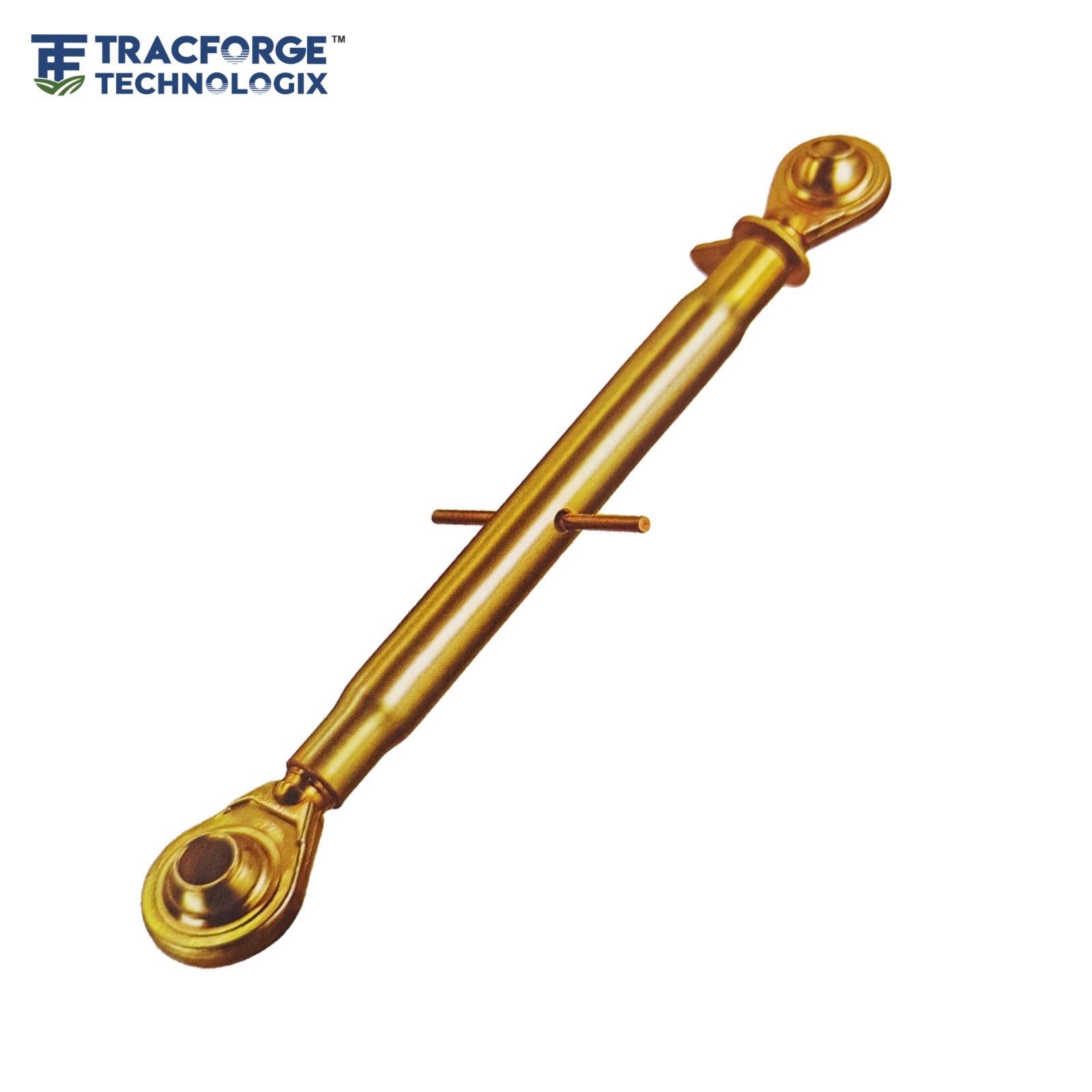

Top Link Assembly (Heavy Duty)

The Heavy-Duty Top Link Assembly is engineered for robust tractor linkage applications, featuring precision-machined M30 × 3 threads and reinforced heavy-duty pipes. Available in multiple CAT combinations (1–1, 1–2, 2–2), it ensures superior stability, smooth adjustment, and long service life. Ideal for demanding agricultural operations requiring reliable lifting and implement control.

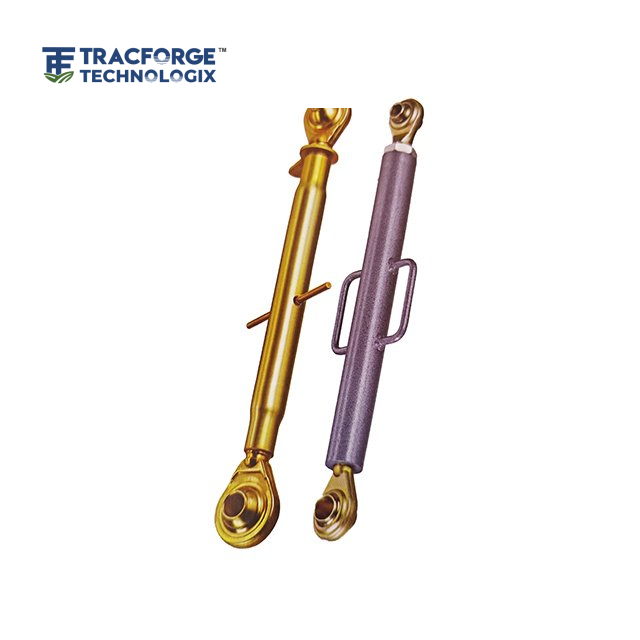

THREAD M30 × 3 (HEAVY DUTY PIPE)

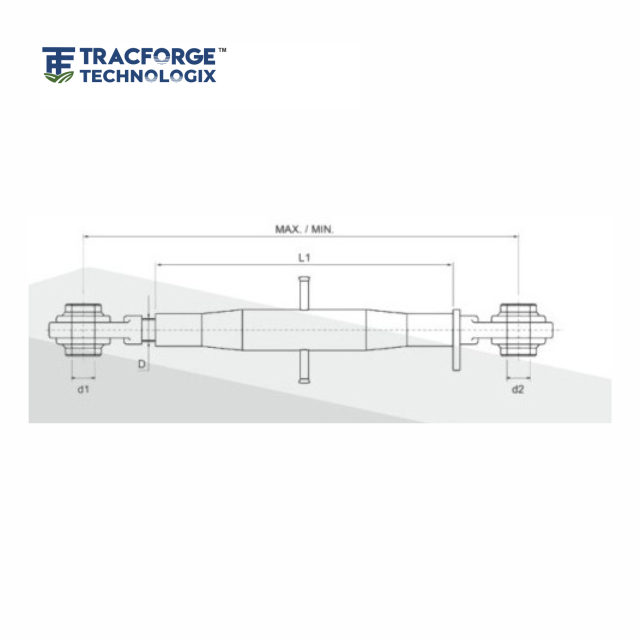

CODE	CAT d1–d2	PIPE L1	THREAD D	MIN.	MAX.
TGF3022330H	2–2	330	M30 × 3	460	700
TGF3022370H	2–2	370	M30 × 3	500	740
TGF3022400H	2–2	400	M30 × 3	530	770
TGF3022450H	2–2	450	M30 × 3	580	830
TGF3022550H	2–2	550	M30 × 3	630	870
TGF3022600H	2–2	600	M30 × 3	730	970

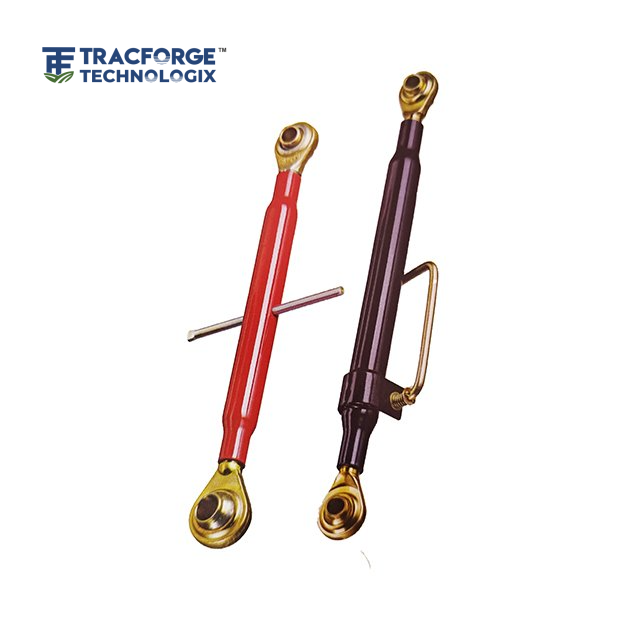

THREAD M30 × 3

CODE	CAT d1–d2	PIPE L1	THREAD D	MIN.	MAX.
TGF3011370H	1–1	370	M30 × 3	500	720
TGF3012370H	1–2	370	M30 × 3	500	730
TGF3022370H	2–2	370	M30 × 3	500	740
TGF3011400H	1–1	400	M30 × 3	530	750
TGF3012400H	1–2	400	M30 × 3	530	760
TGF3022400H	2–2	400	M30 × 3	530	770
TGF3011450H	1–2	450	M30 × 3	580	810
TGF3012450H	1–2	450	M30 × 3	580	820
TGF3022450H	2–2	450	M30 × 3	580	840
TGF3011460H	1–2	460	M30 × 3	590	830
TGF3012500H	1–1	500	M30 × 3	630	850
TGF3011500H	1–2	500	M30 × 3	630	860
TGF3022500H	2–2	500	M30 × 3	630	880
TGF3022550H	2–2	550	M30 × 3	650	930
TGF3022560H	2–2	560	M30 × 3	650	940
TGF3022600H	2–2	600	M30 × 3	930	980
TGF3022650H	2–2	650	M30 × 3	730	1030
TGF3022700H	2–2	700	M30 × 3	880	1080
TGF3022720H	2–2	720	M30 × 3	880	1100

Quality You Can Trust

ISO 9001

Quality Management System certification ensuring consistent product quality.

ISO 14001

Environmental Management System for sustainable manufacturing practices.

OEM-Grade Fitment

Guaranteed compatibility and performance meeting original equipment standards.

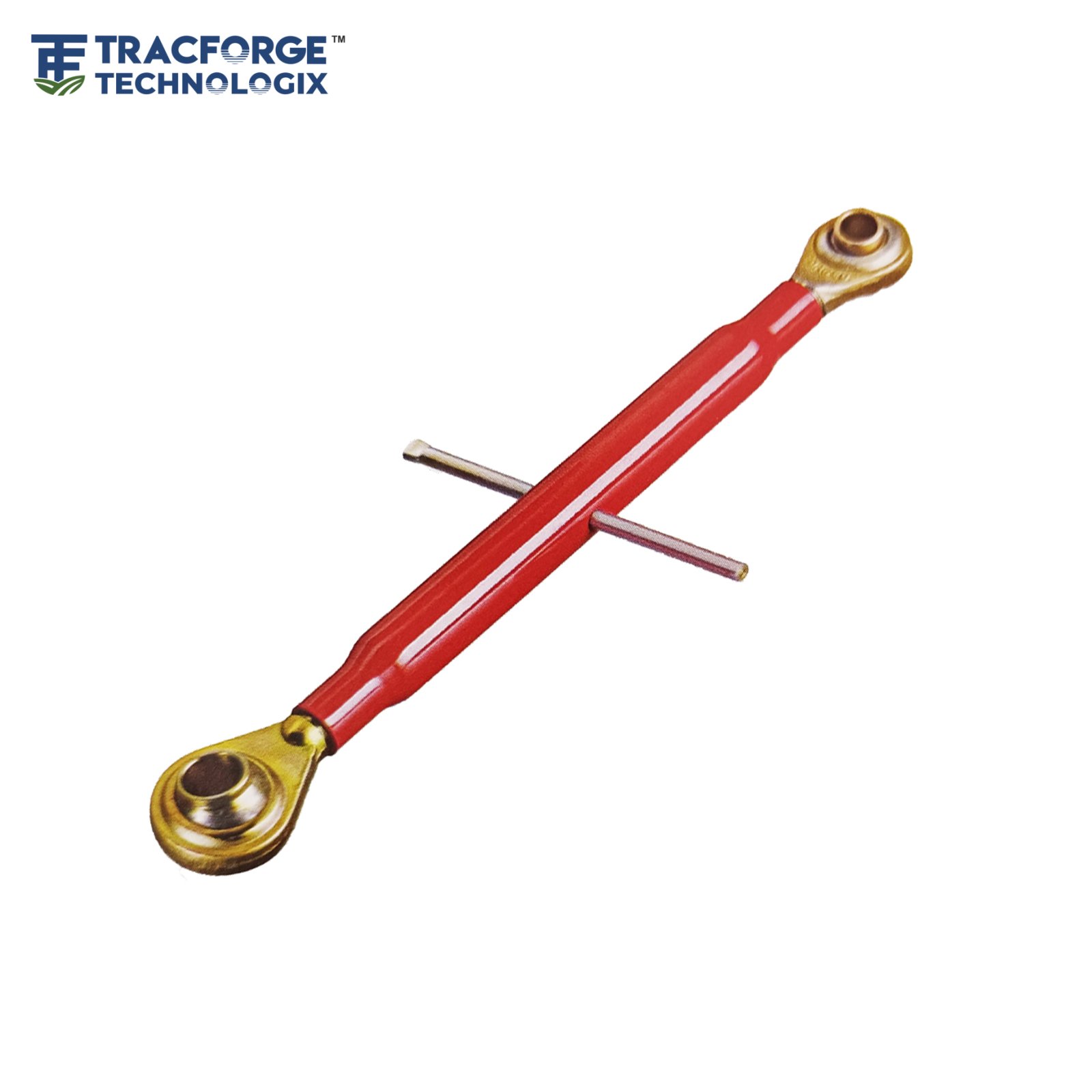

Product Description

The Heavy-Duty Top Link Assembly is designed to deliver maximum strength, reliability, and performance for modern agricultural machinery. Manufactured with premium-grade steel and equipped with precision M30 × 3 threading, it offers exceptional load-handling capacity and long-lasting durability. The heavy-duty pipe construction enhances structural rigidity, ensuring stable and secure operation even under extreme field conditions.

Available in various CAT configurations (1–1, 1–2, 2–2) and multiple length options, this top link assembly provides smooth adjustment and accurate control of tractor-mounted implements. It is compatible with a wide range of tractors and is engineered to withstand constant vibration, heavy loads, and rugged terrain. With corrosion-resistant finishing and robust eye-end construction, it is an ideal choice for ploughing, tilling, hauling, and other demanding farm applications.
