Tine Bushes

High-precision Tine Bushes engineered for agricultural implements. Designed for secure tine mounting, smooth movement, and long service life. Available in multiple outer/inner diameters, lengths, and taper angles for perfect compatibility with various models.

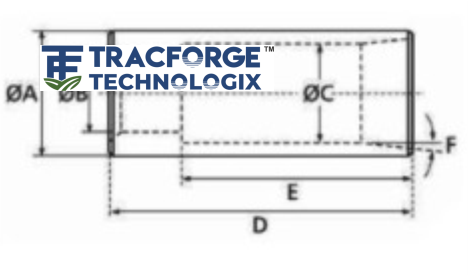

CODE	Outer øA (mm)	Inner øB (mm)	Inner øC (mm)	Length D (mm)	Depth E (mm)	Angle F	Weight (kg)
TGF25TIB002	57	12.59	40	120	105	5º30	0
TGF25TIB003	41	25.4	30	108	80	5º30	0.5
TGF25TIB004	50	30	36	108	80	5º30	0.76
TGF25TIB005	51	30	38	110	86	5º	0.755
TGF25TIB006	41	24	32	110	79	5º	0.51
TGF25TIB007	41	24	32	110	79	5º	0.6
TGF25TIB008	40	23	25	105	78	5º	0.45
TGF25TIB009	50	25	29	110	85	6º	1.08
TGF25TIB010	50	23	29	110	85	6º	1.8
TGF25TIB011	50	30	39	110	84	6º	1.63
TGF25TIB012	55	32	0	120	0	4º30	1.24
TGF25TIB016	50	28	0	105	0	10º	1.05
TGF25TIB018	45	25	0	110	0	5º	0.765
TGF25TIB024	38	25.4	31	95	74	4º30	0.3
TGF25TIB025	51	25	32	110	109	5º30	1.085
TGF25TIB047	33	0	14	63	46	3º	0.292
TGF25TIB048	33	0	16.5	63	48	1.5º	0.281
TGF25TIB049	33	0	16.5	63	48	1.5º	0.263
TGF25TIB050	33	0	16.5	63	48	1.5º	0.281
TGF25TIB051	33	0	16.5	63	48	1.5º	0.256
TGF25TIB052	45	22	28	97	75	5º	1.27
TGF25TIB053	50	32	39	110	84	5.5º	1.02
TGF25TIB054	60	32	39	110	84	5.5º	1.8

Quality You Can Trust

ISO 9001

Quality Management System certification ensuring consistent product quality.

ISO 14001

Environmental Management System for sustainable manufacturing practices.

OEM-Grade Fitment

Guaranteed compatibility and performance meeting original equipment standards.

Product Description

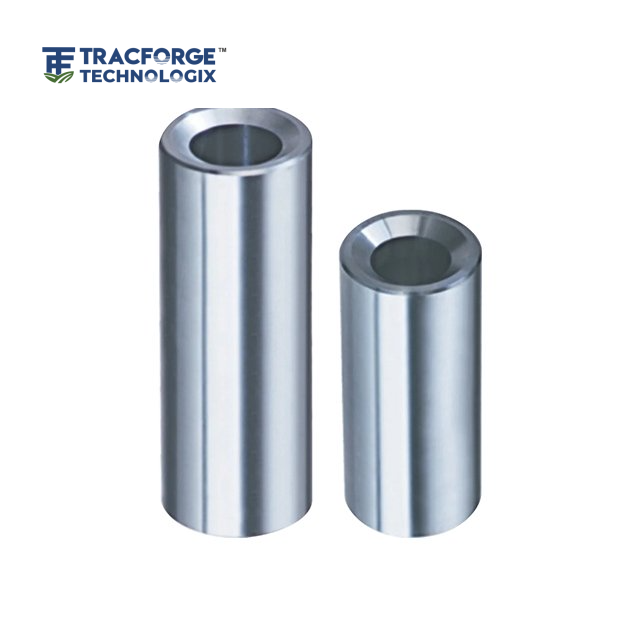

TracForge Tine Bushes are manufactured with premium-grade steel and precision machining for superior durability and accuracy. Engineered to withstand heavy field operations, these bushes ensure perfect tine alignment, reduced wear, and smoother performance in agricultural machinery such as cultivators, tillers, and harrows.

Available in a wide range of outer diameters, inner diameters, lengths (D), taper angles (F), and depth configurations, these bushes offer exceptional compatibility with multiple tine and shank designs. Their corrosion-resistant finish enhances working life even in harsh soil conditions. TracForge Tine Bushes deliver reliable performance, optimal strength, and long-term stability for demanding agricultural applications.
