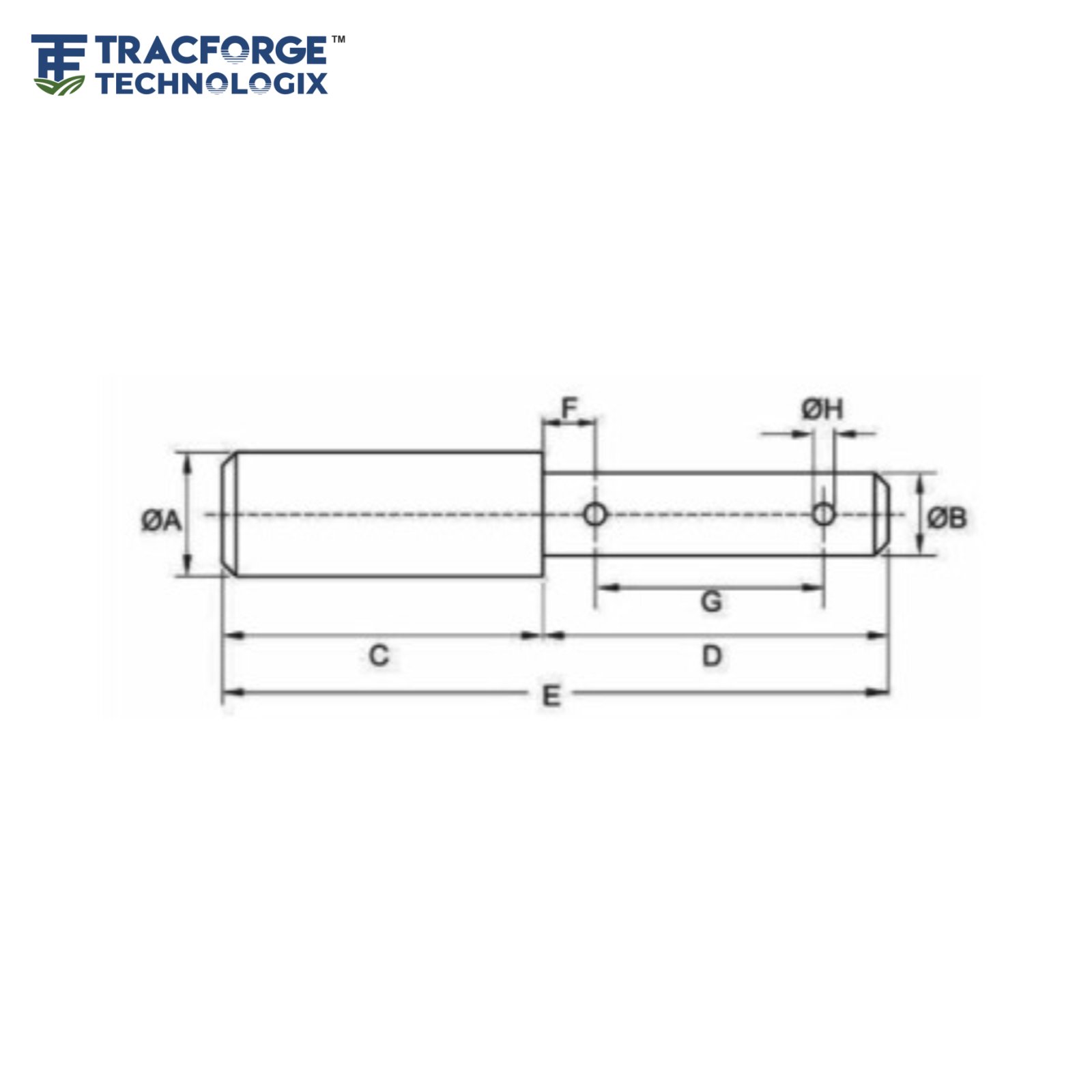

Tractor linkage pin technical drawing with stepped shaft dimensions for OEM agricultural applications

Implement Pin

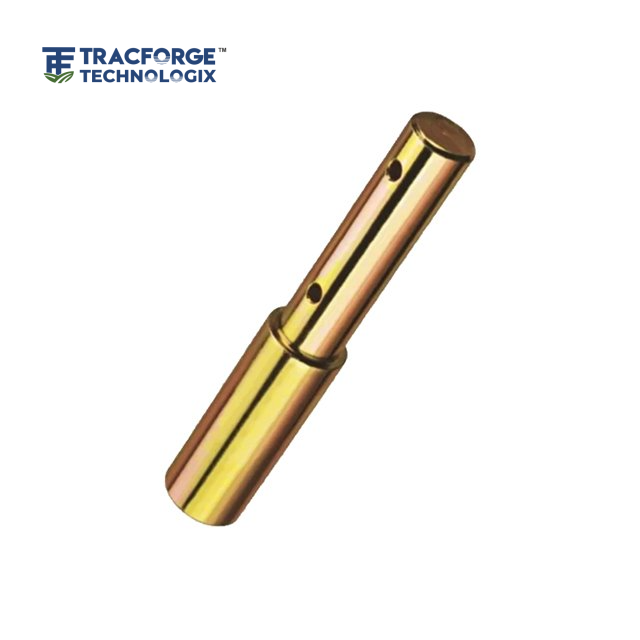

Implement Pin designed for tractor and agricultural attachments. Manufactured with precision diameters for secure linkage fitment, ensuring strength, durability, and smooth operation. Available in multiple sizes for various implements.

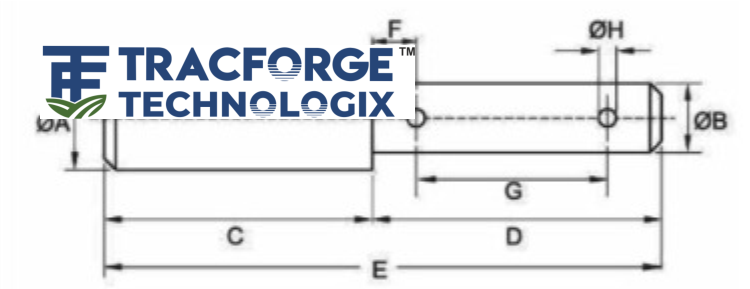

CODE	A	B	C	D	E	F	G	H
TGF19156	19	16	74	82	156	16.5	55	5
TGF22168	22	16	80	88	168	12	68	5
TGF25166	25	19	85	81	166	18	53	5
TGF25160	25	19	80	80	160	18	53	5
TGF25180	25	19	90	90	180	18	57	5
TGF28180	28	22	90	90	180	18	57	5
TGF28175	28	22	90	85	175	16.5	50	6
TGF28180	28	22	90	90	180	16.5	61	6
TGF32178	32	25	83	95	178	18	62	6.5
TGF32172	32	25	83	92	172	22	55	6.5

Quality You Can Trust

ISO 9001

Quality Management System certification ensuring consistent product quality.

ISO 14001

Environmental Management System for sustainable manufacturing practices.

OEM-Grade Fitment

Guaranteed compatibility and performance meeting original equipment standards.

Product Description

The Implement Pin is a high-strength, precision-engineered component used for connecting tractor implements to the three-point linkage system. Designed to withstand heavy loads and continuous field operations, this pin ensures secure attachment and smooth articulation of equipment.

Each pin is manufactured with accurate diameter tolerances, chamfered edges for easy insertion, and multiple locking holes for reliable fastening. Suitable for a wide range of agricultural tractors and implements such as cultivators, rotavators, harrows, and trolley hook-ups.
Available in various sizes (A, B, C, D, E, F, G, H) to meet OEM and aftermarket requirements.
