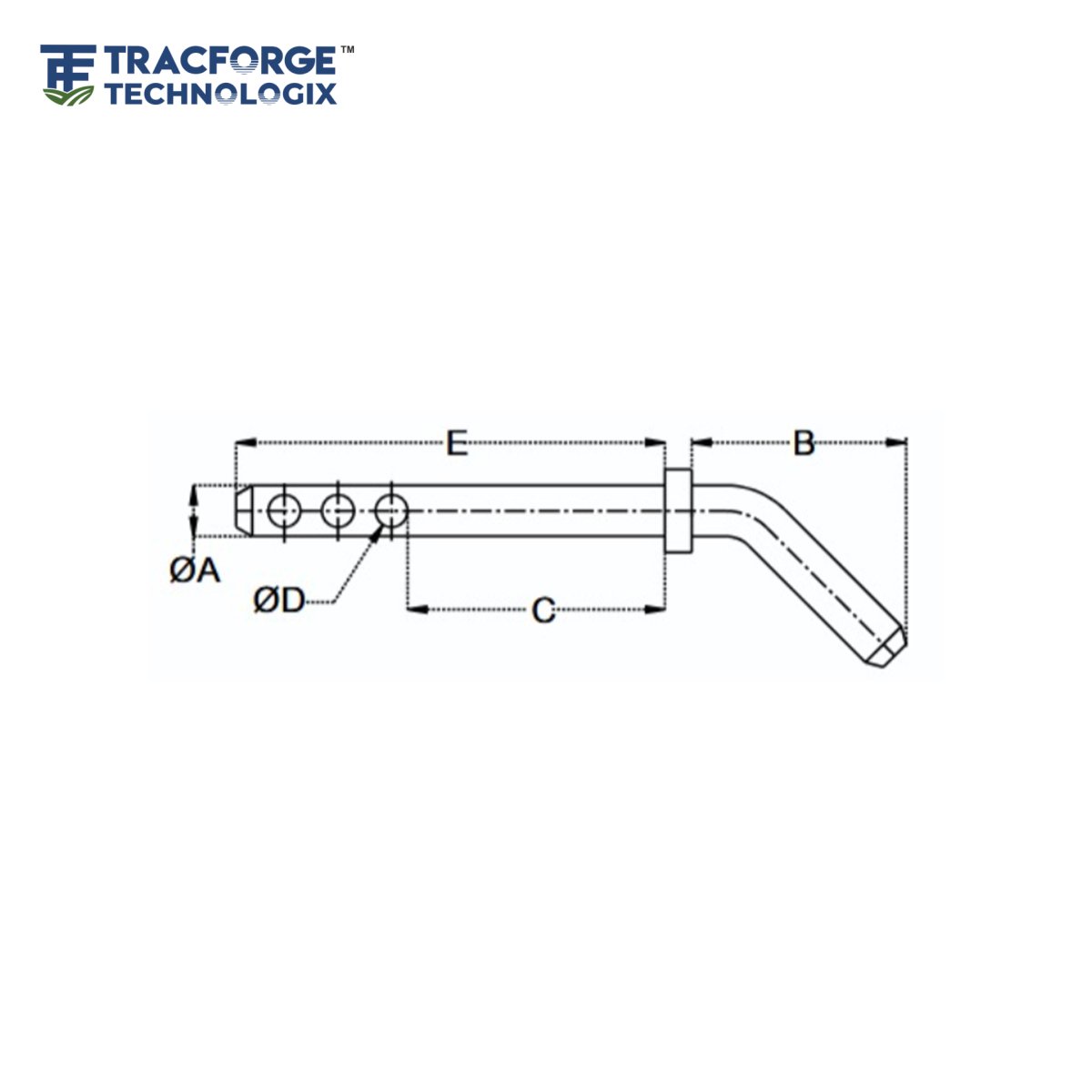

Technical drawing of Bent D implement mounting pin for agricultural machinery

Home Products Implement Mounting Pins – Bent

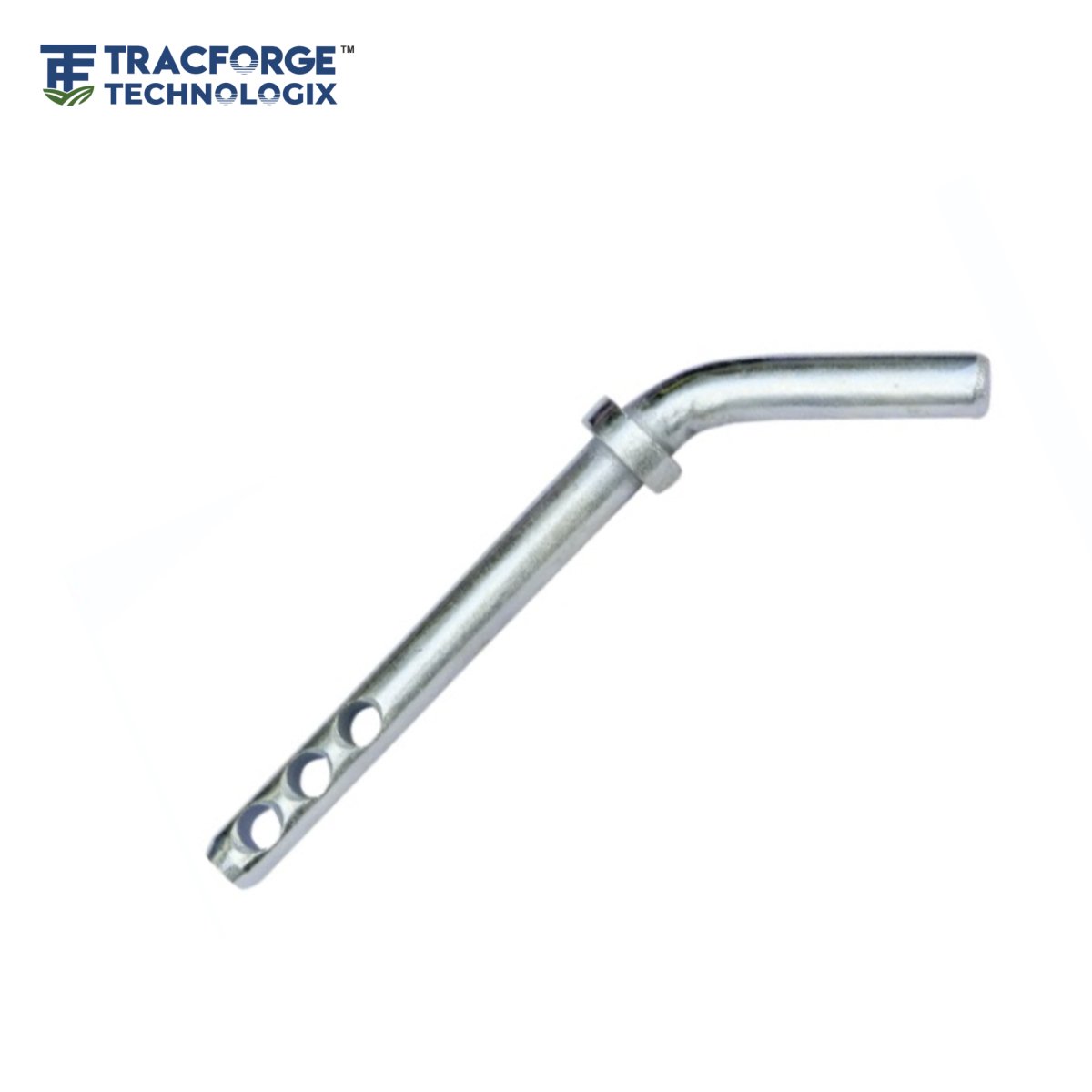

Implement Mounting Pins – Bent

Implement Mounting Pins – Bent are heavy-duty agricultural fastening components designed for secure implement attachment, tractor linkage systems, and reliable farming equipment performance.

Dia. ØA (mm)	Dim. B (mm)	Dim. C (mm)	Dia. ØD (mm)	Dim. E (mm)	Ref. Number
19	90	95	12	160	09078
22	90	95	12	160	09079

Quality You Can Trust

ISO 9001

Quality Management System certification ensuring consistent product quality.

ISO 14001

Environmental Management System for sustainable manufacturing practices.

OEM-Grade Fitment

Guaranteed compatibility and performance meeting original equipment standards.

Product Description

As a leading agricultural component manufacturer, Tracforge supplies heavy-duty implement mounting pins engineered with a durable bent design. These precision-machined linkage parts are built to provide secure mechanical attachment, superior anti-vibration performance, and long-term structural alignment for diverse farming implements and three-point tractor hitch assemblies.

Forged from premium-grade structural carbon steel, our bent mounting pins undergo specialized heat treatment processes to deliver high shear strength and maximize resistance to structural wear in punishing outdoor environments. This extreme resilience makes them a reliable choice for international B2B distributors, agricultural fleet operators, and industrial procurement managers sourcing rugged equipment for North American and European farming sectors.

Technical Performance & Build Features

Material Base: Forged high-tensile carbon steel core
Functional Geometry: Ergonomic bent angle configuration for quick handle grip and fast implement breakdown
Corrosion Barrier: Finished with protective zinc plating or industrial powder coatings to prevent rust
Universal Fitment: Developed to meet international OEM dimensional and tolerance standards

1. Why is a bent configuration preferred for implement mounting pins?

The angled bent geometry serves as an integrated handle, offering field operators a secure mechanical leverage grip for rapid tool changes without sacrificing hitch security or dynamic pull capacity.

2. Are Tracforge bent mounting pins suitable for high-stress tillage equipment?

Yes. Our pins are engineered using induction-hardened steel alloys constructed specifically to bear continuous pulling resistance and intense rotational stress from large plows, cultivators, and tillers.
