Eye End Short

High-strength Short Eye End designed for agricultural linkage systems, providing secure attachment, precise alignment, and long-lasting performance under heavy-duty conditions.

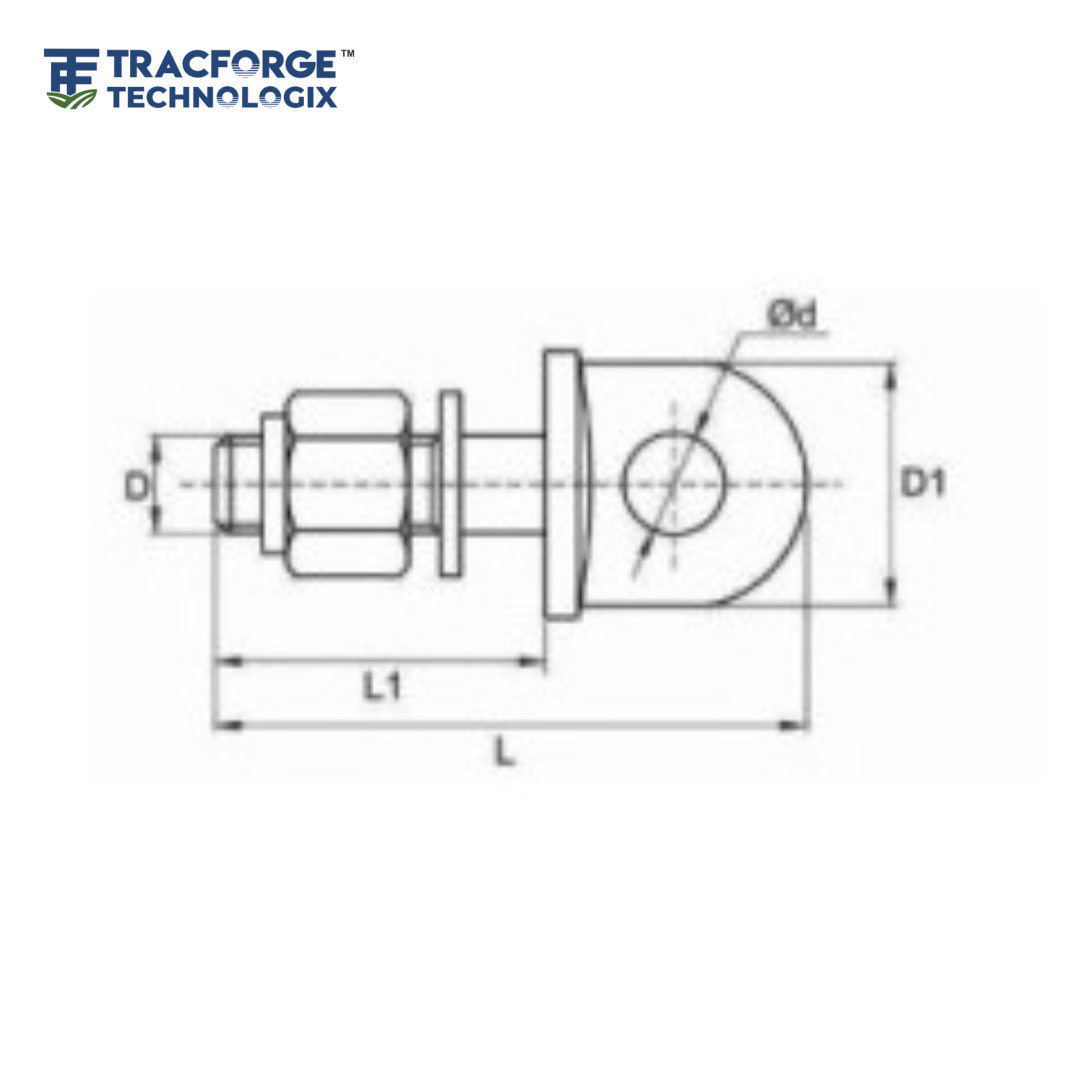

CODE	Thread (D)	L (mm)	Ød (mm)	D1 (mm)	L1 (mm)
TGF16	16 × 1.5	80	15	36	43
TGF18	18 × 2.5	80	15	36	43
TGF20	20 × 2.5	100	18	45	56
TGF24	24 × 2	125	24	53	65

Quality You Can Trust

ISO 9001

Quality Management System certification ensuring consistent product quality.

ISO 14001

Environmental Management System for sustainable manufacturing practices.

OEM-Grade Fitment

Guaranteed compatibility and performance meeting original equipment standards.

Product Description

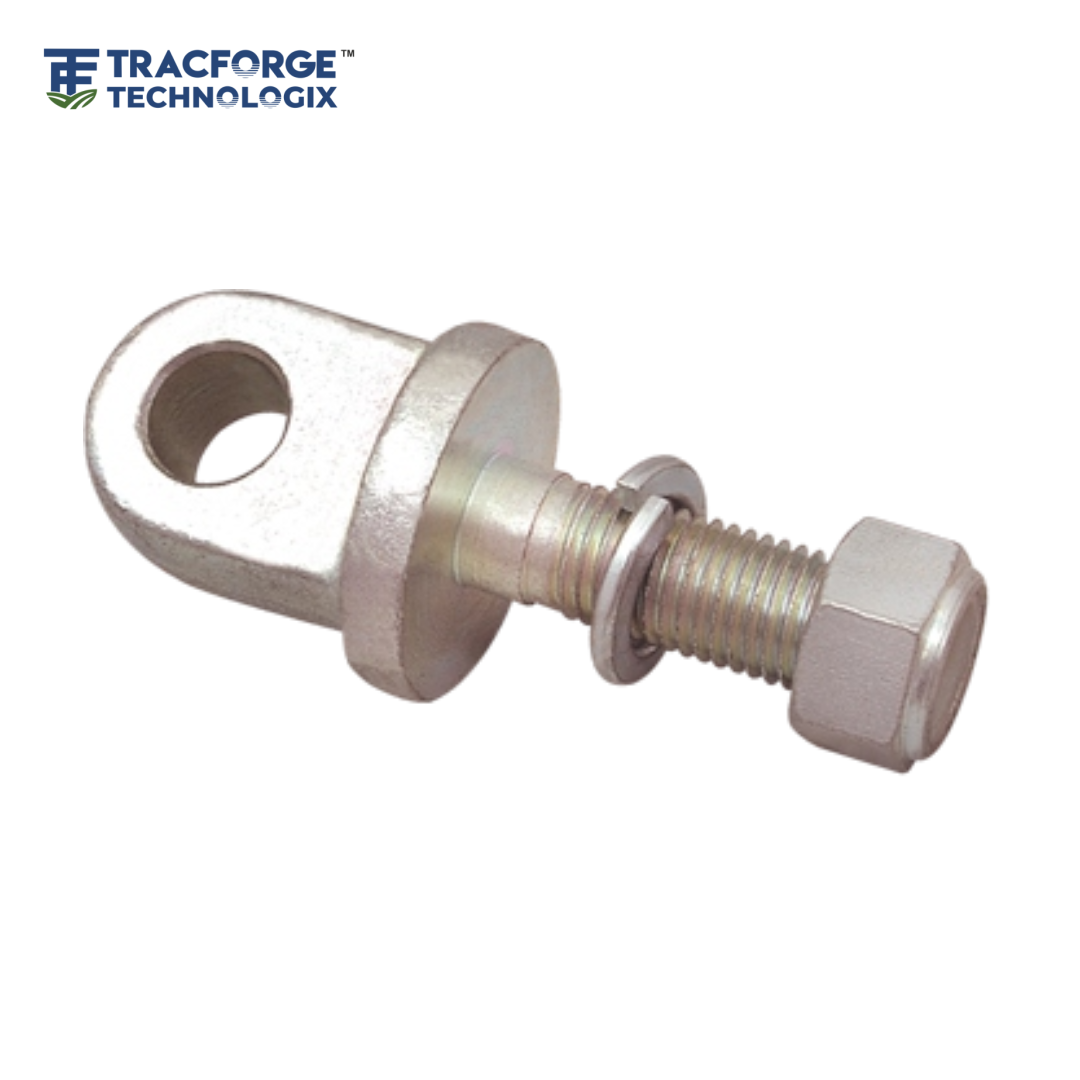

The Short Eye End is a precision-engineered linkage component used in tractor and agricultural machinery for secure attachment and controlled movement of implements.

Made from forged, high-tensile steel, this eye end offers exceptional durability, load-bearing ability, and resistance to bending or wear. The accurately machined eye ensures stable articulation, while the threaded shank allows smooth adjustment and firm locking with the supplied nut and washer.

Its compact, short-length design makes it ideal for tight installation spaces, ensuring reliable performance in a wide range of agricultural tasks including lifting, stabilizing, and towing operations.

Designed to meet industry standards, these Eye Ends are suitable for OEM use, replacements, and new equipment builds.
