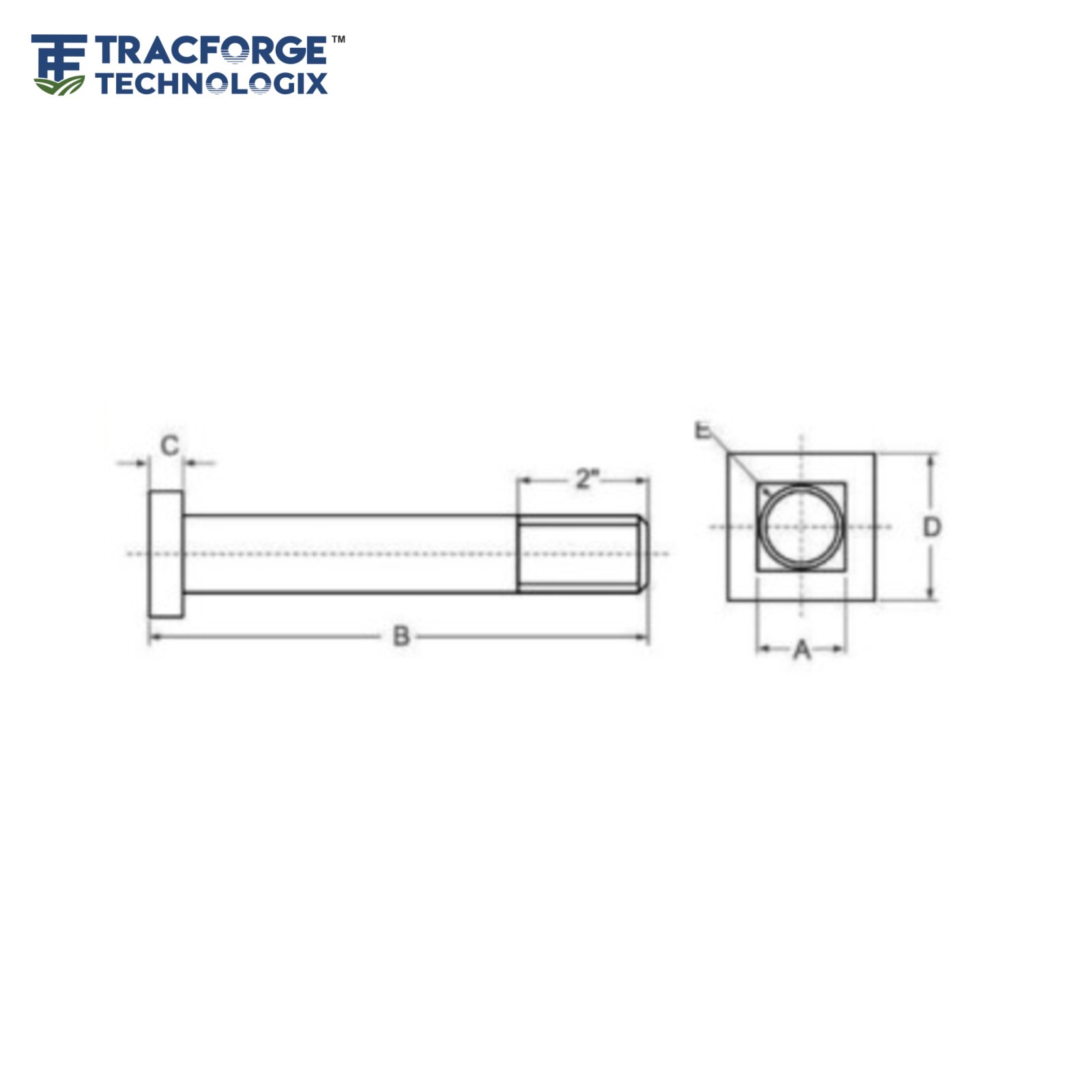

Disc harrow axle technical drawing for agricultural tillage equipment

Home Products Disc Harrow Axle

Disc Harrow Axle

Heavy-duty Disc Harrow Axles engineered for rugged field performance. Manufactured from high-strength alloy steel, precision-machined, and UNC-threaded for secure disc assembly and long-lasting durability.

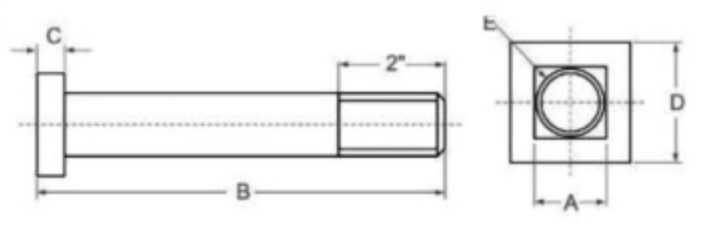

Code	Dim A	Dim B (Length)	Dim C	Dim D	Thread E
TGF01	7/8”	22”	1/2”	1-3/8”	7/8” UNC
TGF02	7/8”	22-1/2”	1/2”	1-3/8”	7/8” UNC
TGF03	7/8”	25-1/4”	1/2”	1-3/8”	7/8” UNC
TGF04	7/8”	26”	1/2”	1-3/8”	7/8” UNC
TGF05	7/8”	30-1/2”	1/2”	1-3/8”	7/8” UNC
TGF06	7/8”	33”	1/2”	1-3/8”	7/8” UNC
TGF07	7/8”	39-1/8”	1/2”	1-3/8”	7/8” UNC
TGF08	7/8”	40-1/4”	1/2”	1-3/8”	7/8” UNC
TGF09	7/8”	41-3/4”	1/2”	1-3/8”	7/8” UNC
TGF10	1”	19”	1/2”	1-1/1”	1” UNC
TGF11	1”	26-1/2”	1/2”	1-1/1”	1” UNC
TGF12	1”	34”	1/2”	1-1/1”	1” UNC
TGF13	1-1/8”	12”	1/2”	1-5/8”	1-1/8” UNC
TGF14	1-1/8”	26-1/4”	1/2”	1-5/8”	1-1/8” UNC
TGF15	1-1/8”	22”	1/2”	1-5/8”	1-1/8” UNC
TGF16	1-1/8”	32”	1/2”	1-5/8”	1-1/8” UNC
TGF17	1-1/8”	31-1/2”	1/2”	1-5/8”	1-1/8” UNC
TGF18	1-1/8”	34”	1/2”	1-5/8”	1-1/8” UNC
TGF19	1-1/8”	40”	1/2”	1-5/8”	1-1/8” UNC
TGF20	1-1/8”	40-1/4”	1/2”	1-5/8”	1-1/8” UNC
TGF21	1-1/8”	42”	1/2”	1-5/8”	1-1/8” UNC
TGF22	1-1/8”	49-1/2”	1/2”	1-5/8”	1-1/8” UNC
TGF23	1-1/8”	56-1/2”	1/2”	1-5/8”	1-1/8” UNC
TGF24	1-1/8”	58-1/2”	1/2”	1-5/8”	1-1/8” UNC
TGF25	1-1/8”	64”	1/2”	1-5/8”	1-1/8” UNC
TGF26	1-1/8”	67-1/2”	1/2”	1-5/8”	1-1/8” UNC
TGF27	1-1/8”	71-1/2”	1/2”	1-5/8”	1-1/8” UNC
TGF28	1-1/8”	76-1/2”	1/2”	1-5/8”	1-1/8” UNC
TGF29	1-1/8”	79”	1/2”	1-5/8”	1-1/8” UNC
TGF30	1-1/8”	85-1/2”	1/2”	1-5/8”	1-1/8” UNC
TGF31	1-1/8”	94-1/2”	1/2”	1-5/8”	1-1/8” UNC
TGF32	1-1/8”	95-11/16”	1/2”	1-5/8”	1-1/8” UNC
TGF33	1-1/8”	104-11/16”	1/2”	1-5/8”	1-1/8” UNC

Quality You Can Trust

ISO 9001

Quality Management System certification ensuring consistent product quality.

ISO 14001

Environmental Management System for sustainable manufacturing practices.

OEM-Grade Fitment

Guaranteed compatibility and performance meeting original equipment standards.

Product Description

Our Disc Harrow Axles are designed to deliver exceptional strength, alignment accuracy, and wear resistance for demanding agricultural operations. Each axle is forged and machined to exact dimensions, ensuring a perfect fit with disc blades and bearings.

The robust UNC-threaded ends provide secure fastening, while the carefully controlled dimensions maintain smooth rotation and consistent disc spacing. Available in multiple diameters and lengths (7/8”, 1”, and 1-1/8”) to suit a wide range of harrow models and configurations.

Ideal for heavy tillage applications, these axles guarantee long service life, reduced downtime, and reliable performance across challenging soil conditions.
